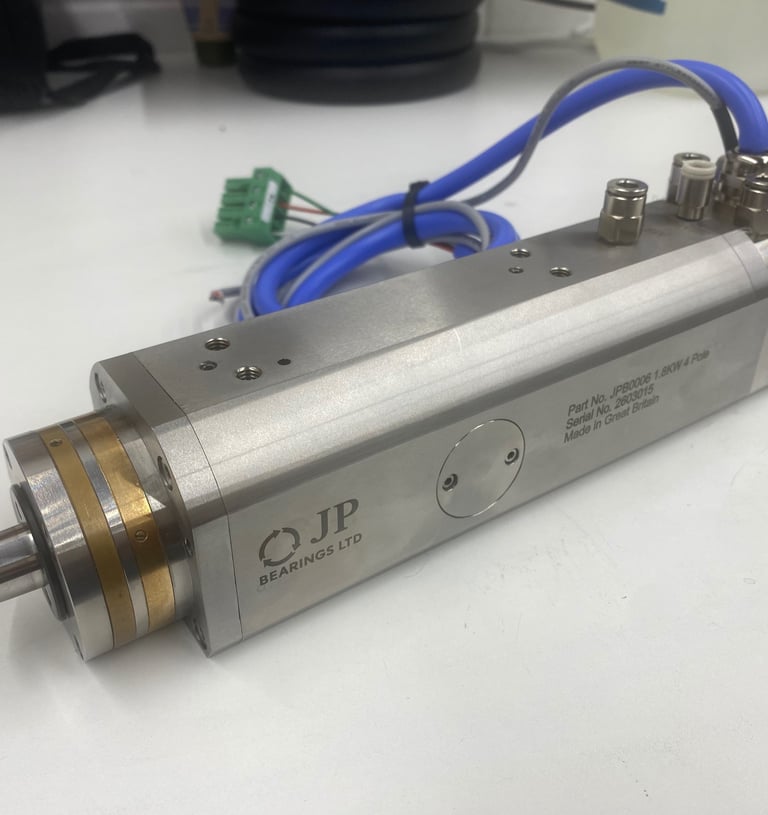

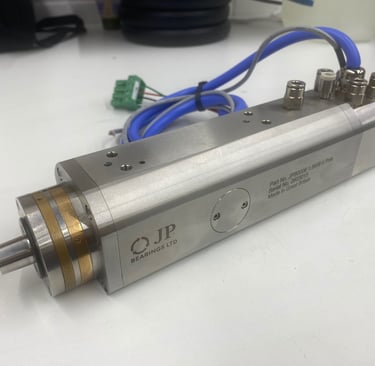

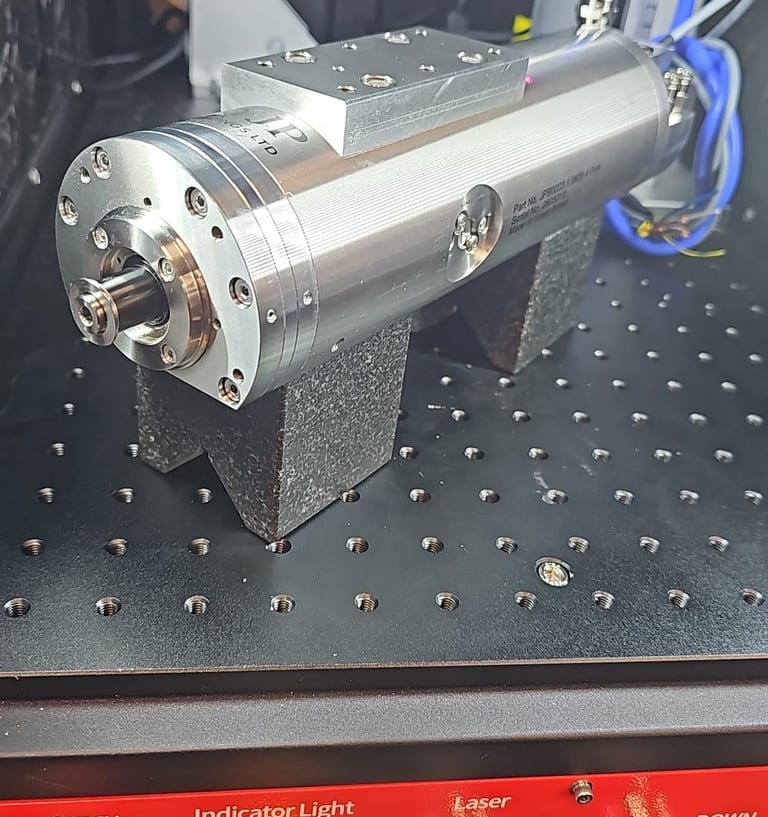

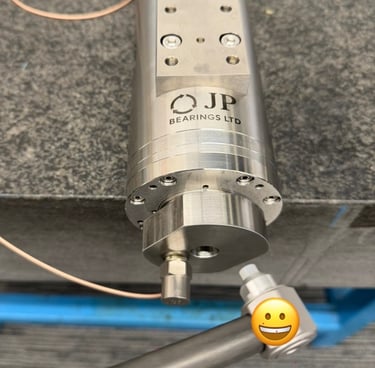

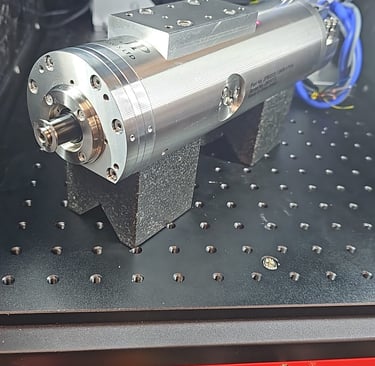

1.8/2.4KW combination gantry and rear side mounting spindle

Combination Gantry/End Mounting Spindle

1.8KW/2.4KW/3.0KW

60,000rpm Gantry Mount Spindle Runout <0.5microns TIR

Vibration <0.1mm/second to 60,000rpm

jon@jp-bearings.com

1.8KW 60,000rpm,

Runout <0.5microns TIR

Vibration <0.1mm/second to 60,000rpm

Spindles rigidity unrivalled and developed for tough Ai package dicing and ultra thin wafer fragile dicing

jon@jp-bearings.com

Technology Development Spindle Dynamic Analysis

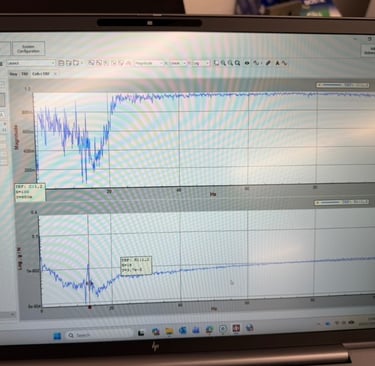

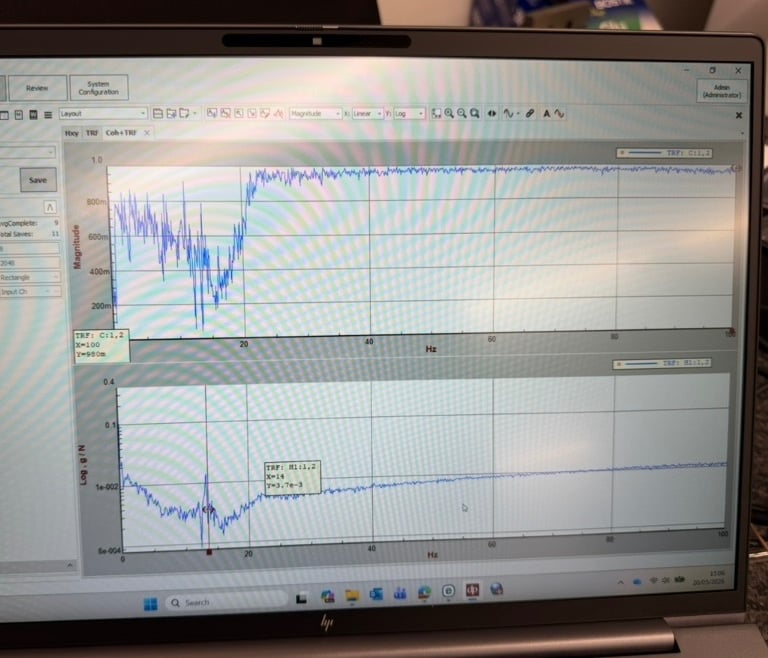

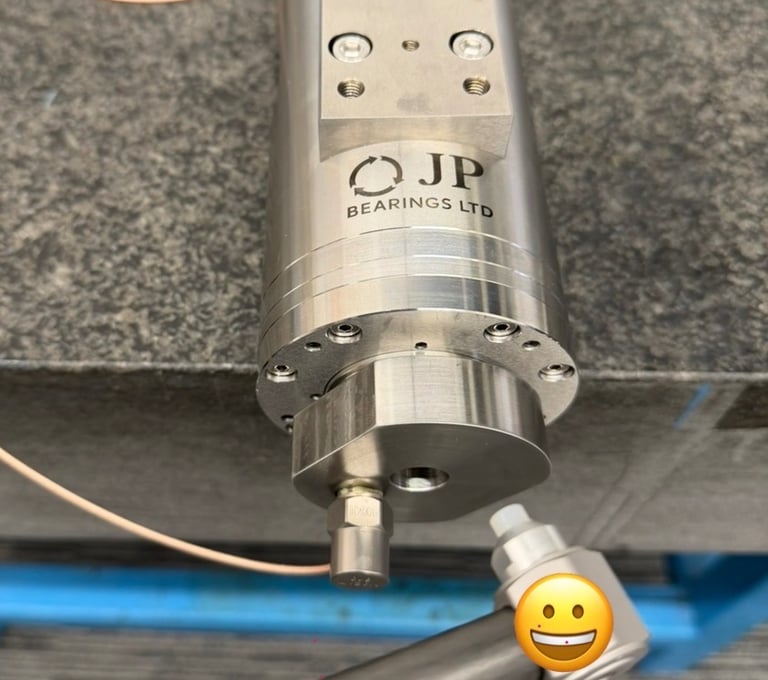

Stiffness and dynamic response analysis like this are critical for understanding spindle behavior, predicting critical speeds, and validating real-world rigidity beyond theoretical design calculations. Using hammer testing and frequency response measurements to correlate static stiffness with dynamic performance sounds like a powerful approach for improving machine reliability and precision.
